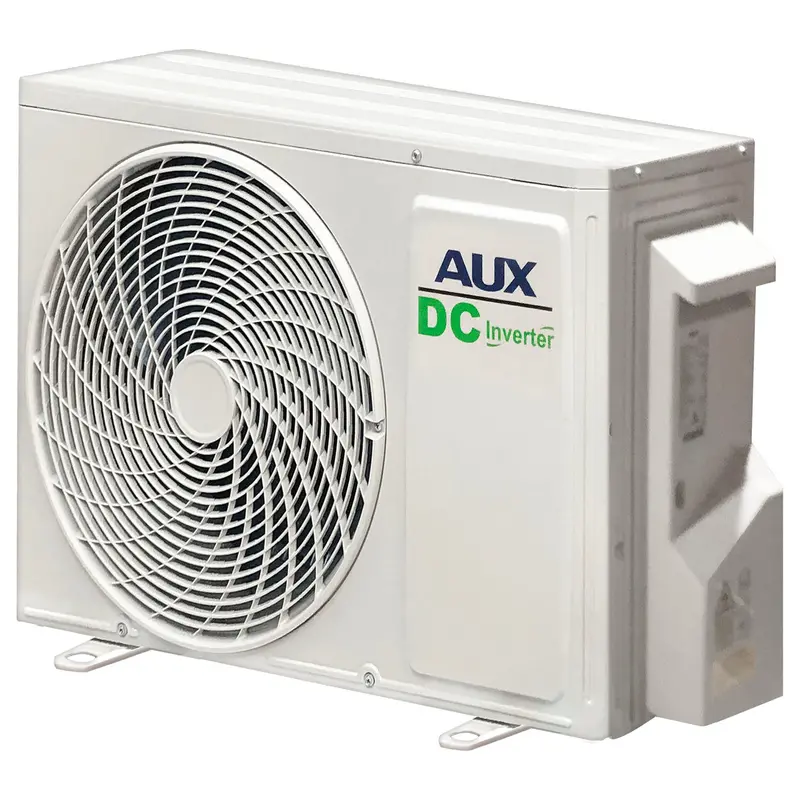

27,000 Btu Inverter Outdoor Condenser For Multi-Zone Cooling

Specification

Aux – Multi-Outdoor AC

Inverter (Free Match) = 1 Drive 3

Brand: Aux

Series: Free Match

Model: AM3-H27/4DR3

Capacity: 27000 BTU

System Format: 1 Drive 3

Warranty: 12 Months Warranty

Cooling Capacity:

• 26955 (7848 – 29650) Btu/h
• 7.9 (2.3 – 8.69) kW

Electric Data:

• Power Supply: 220~240V, 50Hz, 1-Phase
• Cooling Power Input: 2460 (560 – 3400) W
• Rated Current (Cooling): 10.7A
• Max current: 16A
• Max power: 3.4kW

DC Inverter Compressor:

• Type: Rotary
• Capacity: 7715W
• Input: 2085W
• Power Supply: 220~240V, 50Hz, 1Ph
• Rated Current: 9.5A
• Operating Frequency: 60Hz
• Refrigerant Oil: VG74/670ml
• Frequency Range: 12~120 Hz

Outdoor DC Inverter Fan Motor:

• Type: DC Inverter
• Insulation Class: E
• Safe Class: IP24
• Input Power: 85W
• Output Power: 65W
• Speed: 870-350 r/min

Outdoor Fan:

• Material: Plastic
• Diameter: Ø470 x 140mm

Outdoor Coil:

• Number of Row: 2
• Tube Pitch (a) x Row Pitch (b): 22 x 19.05mm
• Fin Pitch: 1.3mm
• Fin Material: Hydrophilic aluminum fin
• Tube outside Dia. and Material: φ7, Inner grooved
• Coil Length x Height x Width: 757 x 616 x 38.1mm

Air Flow Volume:

• 1824 CFM
• 3100 m³/h

Noise Level:

• Sound Pressure Noise Level: 58 dB (A)
• Sound Power Noise Level: 65 dB (A)

Refrigerant type:

• Type: R32
• Charged Volume: 1.05kg
• Additional charge: 20 (g/m)

Piping:

• Liquid Side: 3 X 6.35 mm (1/4”)
• Gas Side: 3 X 9.52 mm (3/8”)
• Length for all rooms (m): 60m
• Length for one IU (m): 30m
• Height difference between IU and OU (m): 15m
• Height difference between IUs (m): 10m

Ambient Temp (Cooling): -15~52℃

Dimension & Weight:

Width x Depth x Height

Product Dimension: 834 x 328 x 655mm (32.8” x 12.9” x 25.8”)

Packing Dimension: 945 x 435 x 725mm (37.2” x 17.1” x 28.5”)

Net Weight: 46kg

Gross Weight: 49kg

Packing Contents:

27k BTU Outdoor AC – x1

User Manual – x1
